Model DL15-100-SV-C-PH, Series Linear Actuators

SKU: DL15-100-SV-C-PH Category:

* Request quote to see pricing

Request Quote

Unit

Metric

Series

DL15 Series Linear Actuators

Width

Standard Width

Travel

100 mm

Metric Travel Filter

0 to 100 mm

Load Capacity

150 N

Metric Capacity Filter

0 to 200 N

Accuracy

50 mm

M1

1.4

M2

2.5

M3

2.5

OAL Stepper

176.2

L Stepper

137

N Stepper

5

A Stepper

34.2

B Stepper

28

C Stepper

23

D Stepper

3.2

E Stepper

22

OAL Servo

177.2

A Servo

35.2

B Servo

25

C Servo

19.8

D Servo

1.7

E Servo

20

L Servo

137

Drive

Teflon Coated lead screw 3.17mm dia with 1 mm lead

Motor Adapter

Yaskawa SGMM

CofFriction

0.01

Repeatability

4

Parallelism

10

BackLash

0

Linear Speed

100

Sensors

Photo Sensors SUNX PMY54

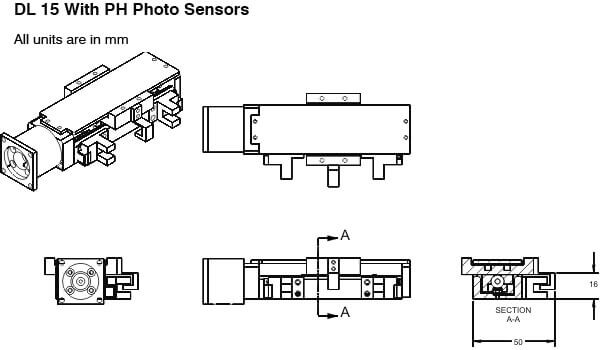

Dimension Drawing
