Model DL15-100-ST-PX, Series Linear Actuators
UnitMetric
SeriesDL15 Series Linear Actuators
WidthStandard Width
Travel100 mm
Metric Travel Filter0 to 100 mm
Load Capacity150 N
Metric Capacity Filter0 to 200 N
Accuracy50 mm

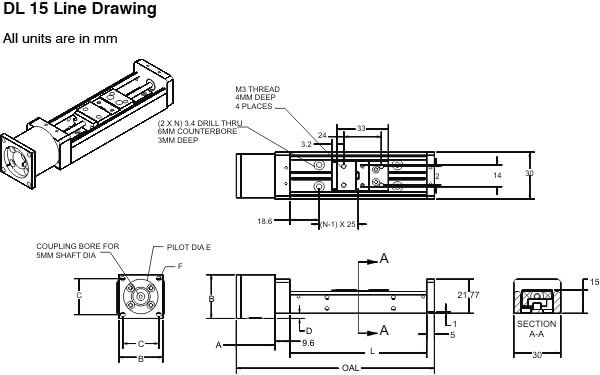

M11.4
M22.5
M32.5
OAL Stepper176.2
L Stepper137
N Stepper5
A Stepper34.2
B Stepper28
C Stepper23
D Stepper3.2
E Stepper22
OAL Servo177.2
A Servo35.2
B Servo25
C Servo19.8
D Servo1.7
E Servo20
DriveTeflon Coated lead screw 3.17mm dia with 1 mm lead
Motor AdapterOriental PK223 (NEMA 11)
CofFriction0.01
Repeatability4
Parallelism10
Linear Speed100

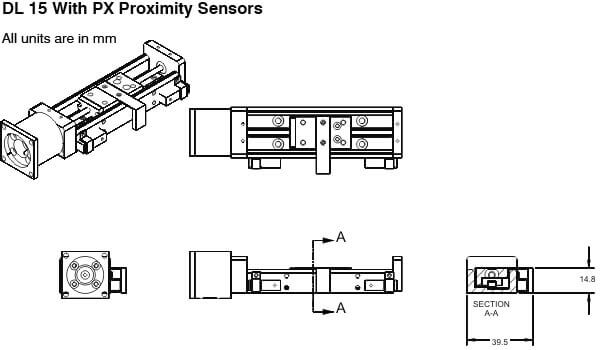

SensorsProximity Sensor SUNX 6GLF
