Model D-1-NMS, Non-Magnetic Linear Ball Slides

SKU: D-1-NMS Category:

* Request quote to see pricing

Request Quote

Unit

US Standard

Travel

0.5"

US Travel Filter

0 to 2"

Capacity

1.2 lbs

US Capacity Filter

0 to 55 lbs

Weight

0.3 lbs

A

1.060"

B

0.320"

C

0.560"

D

0.625"

E

0.218"

F

0.187"

G

0.250"

H

0.750"

Carriage Holes

2-56 UNC-2B Thread

Hole (d)

0.101

Hole (D1)

0.144

Hole H

0.1

Counter Bore

#2

Accuracy

0.0005"

Product Type

Ball Slide

Finish

Clear-Black

M1

0.51

M2

0.96

M3

1.01

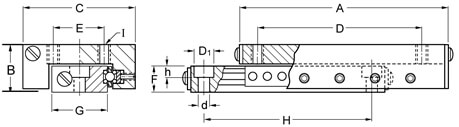

Dimension Drawing
