Model 99SD-XYZ, Side Drive Positioning Stage

* Request quote to see pricing

Request Quote

capacityz

capacityxy

Unit

US Standard

Series

99SD, R99SD

IM

Inch

Travel

.25"

US Travel Filter

0 to 2"

Capacity

5 lbs

US Capacity Filter

0 to 55 lbs

Accuracy

0.0005"

Product Type

Ball

M1

0.97"

M2

0.97"

M3

0.97"

C

.562"

D

.531"

E

.312"

F

.312"

G

.63"

M

.531"

CBORE

2 – 56

Thread

2 – 56

Holes

8

N

.562"

P

.405"

L

1.48"

Hx

.53"

Capacity Z

2.5 lbs

Work Surface

.75 X .75

Through Hole

8

W

1.29 lbs

Axis

(XYZ) Triple Axis

Option M Price

0

Option LM

0

Option LM Price

0

Option PL

0

Option PL Price

50

Orientation

Side Drive

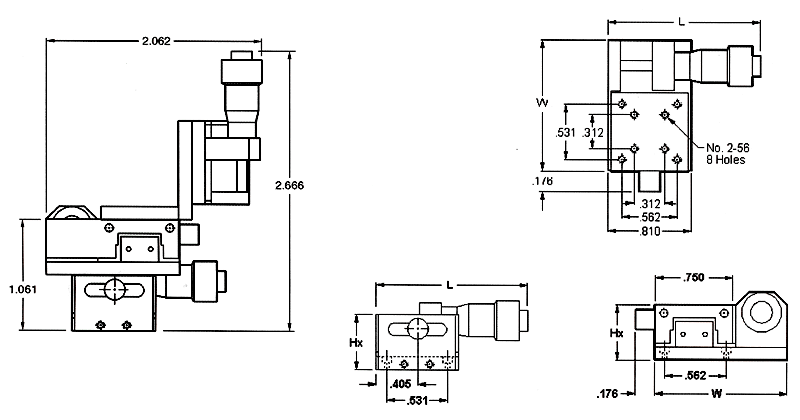

Dimension Drawing
