Model 201SD-XY, Side Drive Positioning Stage

* Request quote to see pricing

Request Quote

capacityxy

Unit

US Standard

Series

201SD, R201SD

IM

Inch

Travel

.50"

US Travel Filter

0 to 2"

Capacity

4 lbs

US Capacity Filter

0 to 55 lbs

Accuracy

0.0005"

Product Type

Ball

M1

2.52"

M2

2.4"

M3

2.4"

C

1.50"

D

1.50"

E

1.19"

F

1.00"

M

.50"

CBORE

2 – 56

Thread

2 – 56

Holes

10

N

1.19"

O

1.440"

P

.611"

L

2.42"

Hx

.38"

Work Surface

1.75 X 1.75

Through Hole

10

W

2.26 lbs

Axis

(XY) Double Axis

Option M Price

0

Option LM

0

Option LM Price

0

Option PL

1

Option PL Price

100

Orientation

Side Drive

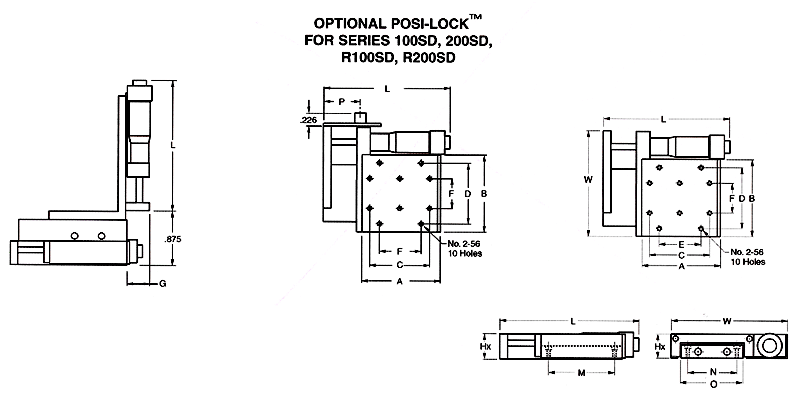

Dimension Drawing
