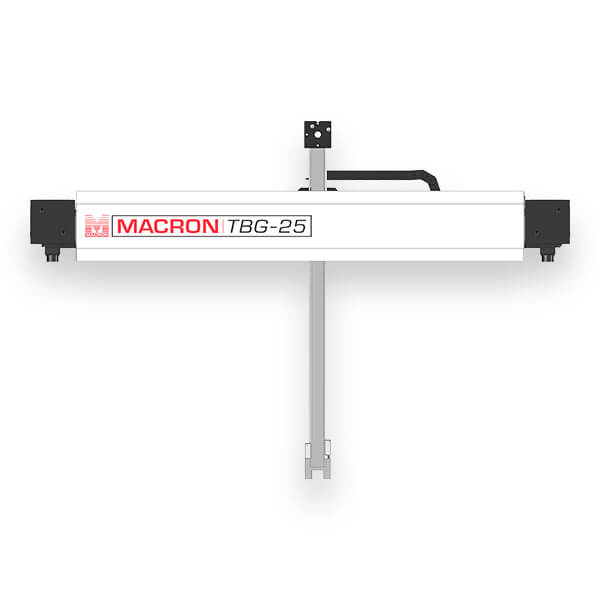

MGS-TBG-25

Notes:

• Gantry systems do not include T-slot sensors, Gearboxes or Motor mounting adaptors. By checking the Give Me Options for boxes you may specify your requirements in the request for quote entry fields.
• Gantry systems include cable track. Please refer to the Product Specification download document for the standard size.
• Motor sizing information is provided in the Product Specification download document.
• For Travel requirements over Standard values contact Macron Dynamics for assistance in developing a MacBUILT system.

Features:

• Fast and versatile belt driven  2 axis Pick & Place system
• One single belt drives both axes
• Two fixed motor mounting locations
• Fixed motors reduce load, cable management and inertia requirements
• Positional repeatability +/- .05 mm
• Speeds up to 2000 mm/sec.
• Sealed linear profile rail and bearing guidance
• Mounting flexibility for a variety of end effectors
