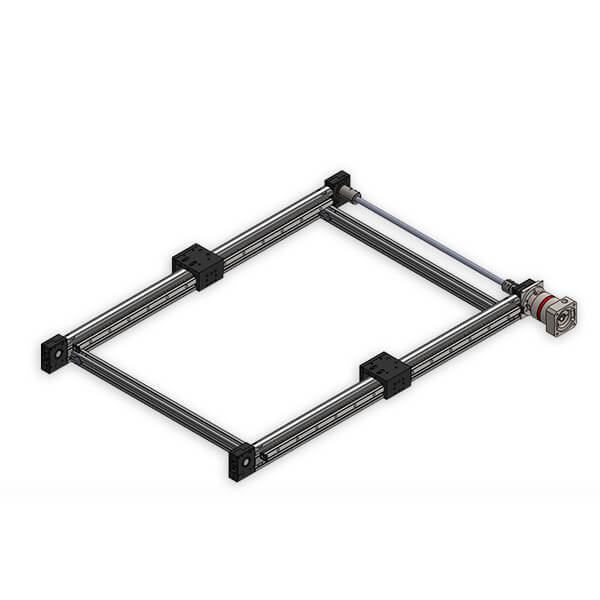

MDS-R15

SKU: MDS-R15 Category:

Request Quote

Configuration

X / Y

Designation

MDS-R15

X Axis Travel

150 – 5775 [25mm increments]

Y Axis Travel

500 – 5000 [25mm increments]

Max Load

300 lbs.

Notes:

  • Gantry systems do not include T-slot sensors, Gearboxes or Motor mounting adaptors. By checking the Give Me Options for boxes you may specify your requirements in the request for quote entry fields.
  • Gantry systems include cable track. Please refer to the Product Specification download document for the standard size.
  • Motor sizing information is provided in the Product Specification download document.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance in developing a MacBUILT system.
  • Separation of actuators is measured from the centerline of cart to centerline of cart in 25mm increments to a maximum distance of 5000mm.

Features:

  • Designs based on MacSTANDARD family of actuators with “connection kits”.
