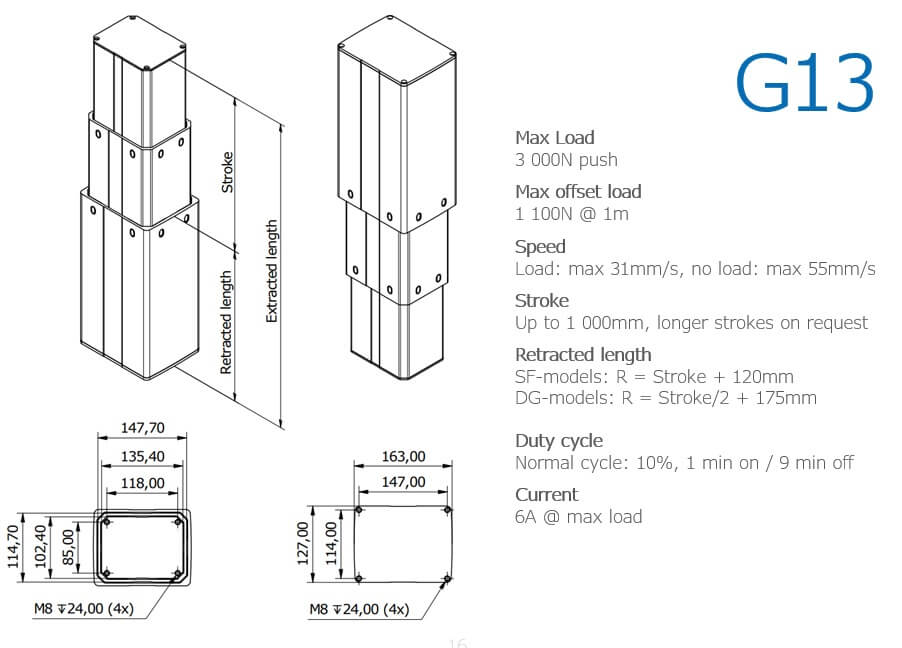

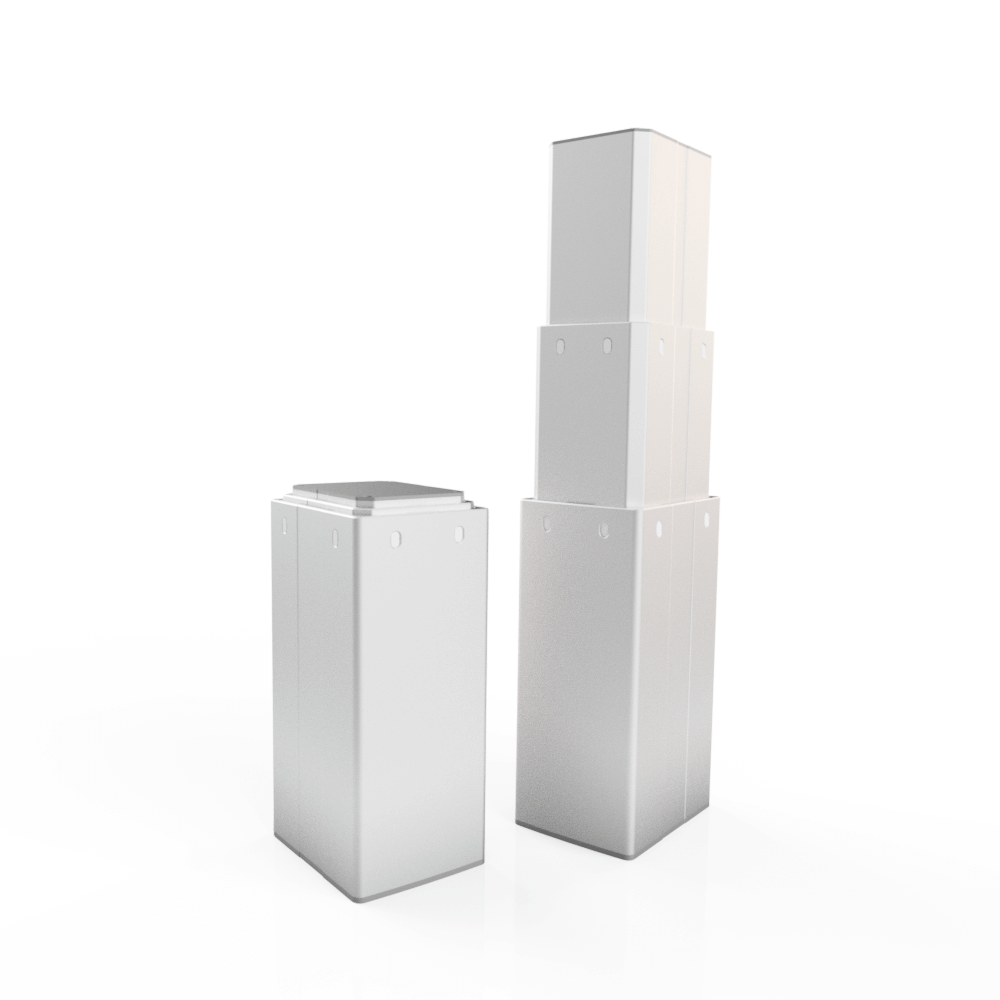

G13 Telescopic Lifting Column
Max Load3,000 N
Max Offset Load1,100 N @ 1m
SpeedLoad: max 31 mm/s, No load: max 55 mm/s
StrokeUp to 1,000 mm, Longer strokes on request
Retracted LengthDG-models: R = Stroke/2 + 175 mm, SF-models: R = Stroke + 120 mm
Duty cycle, on/offNormal cycle: 10%, 1 min on / 9 min off
Current6A @ max load
