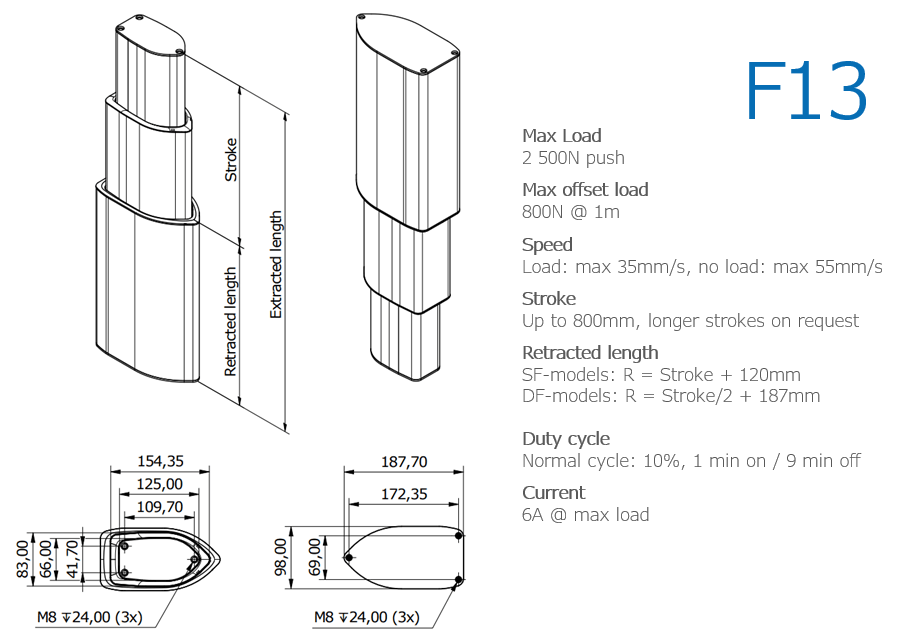

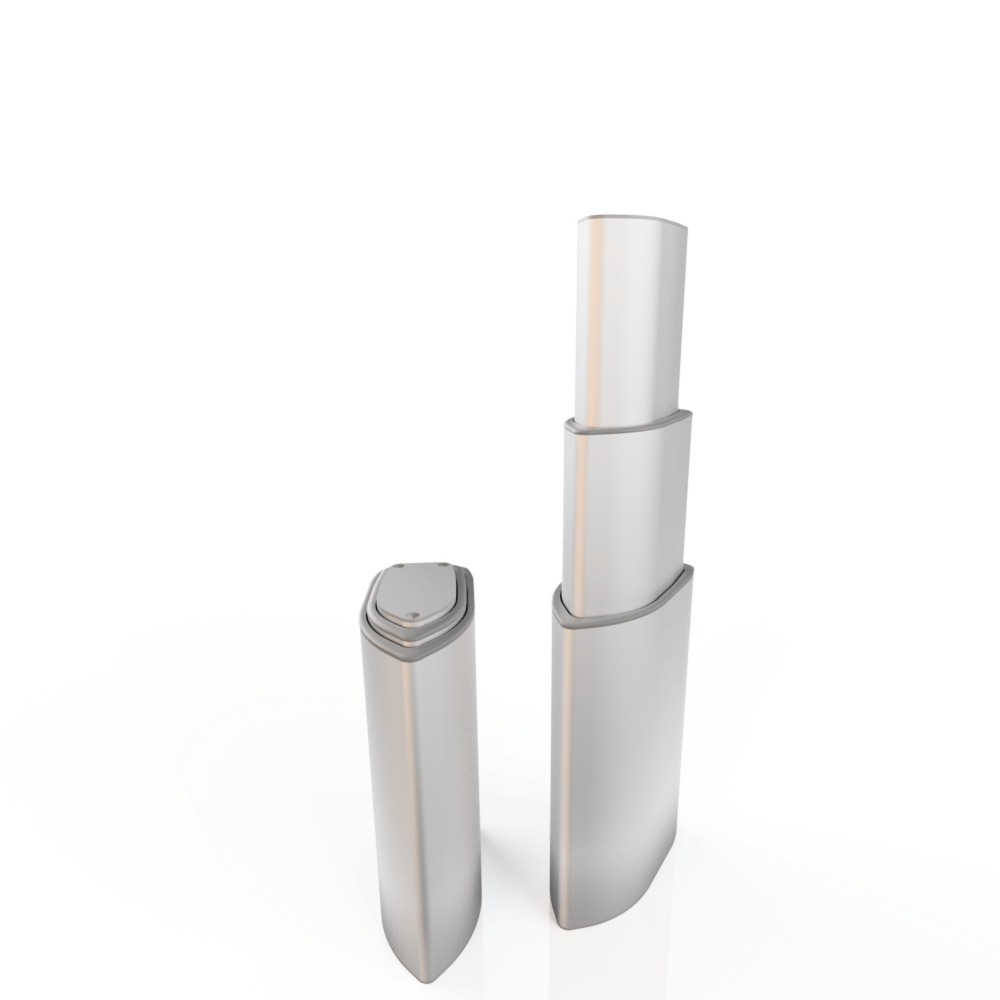

F13 Telescopic Lifting Column
Max Load2,500 N
Max Offset Load800 N @ 1 m
SpeedLoad: max 35 mm/s, No load: max 55 mm/s
StrokeUp to 800 mm
Retracted LengthDF-models: R = Stroke/2 + 187 mm, SF-models: R = Stroke + 120 mm
Duty cycle, on/offNormal cycle: 10%, 1 min on / 9 min off
Current6A @ max load
