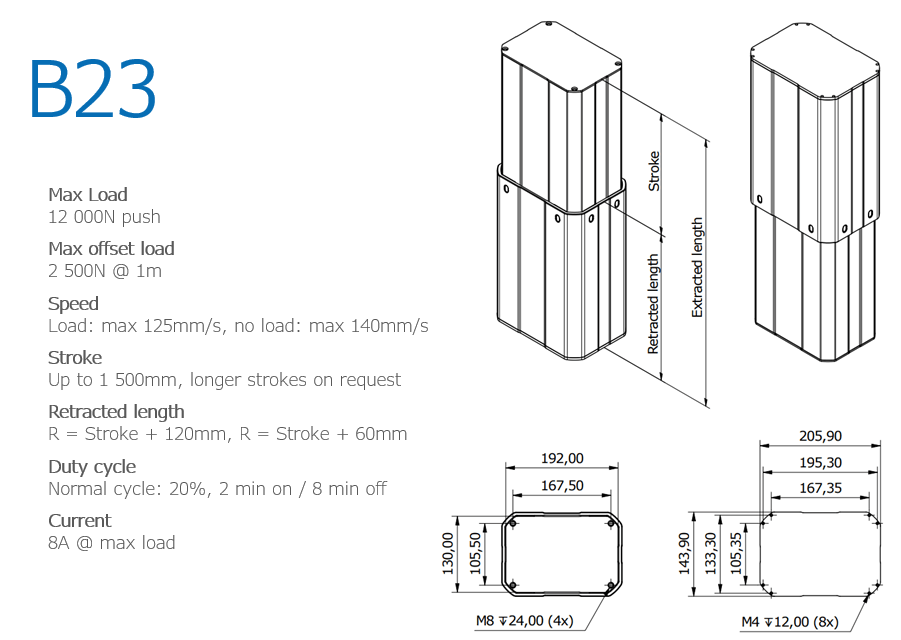

B23 Telescopic Lifting Column
Max Load12,000 N
Max Offset Load2,500 N @ 1 m
SpeedLoad: max 125 mm/s, No load: max 140 mm/s
StrokeUp to 1,500 mm, Longer strokes on request
Retracted LengthR = Stroke + 120 mm, R = Stroke + 60 mm
Duty cycle, on/offNormal cylce: 20%, 2 min on / 8 min off
Current8A @ max load
