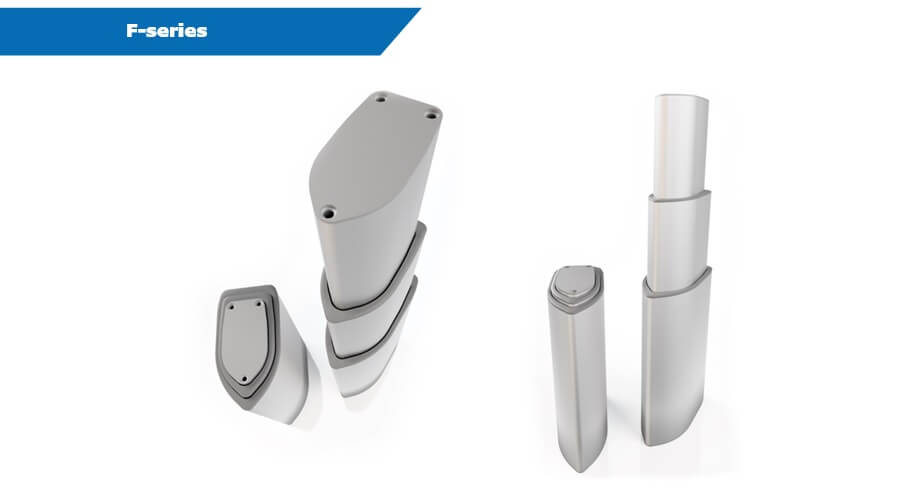

The F-series lifting column consists of asymmetric tubes with a softer design in comparison to the traditional lifting columns. F-series are available as 2- and 3-section columns. With the small size and asymmetric shape, the F-series lifting columns suits applications that needs a compact lifting column with a dynamic design to integrate with the design of the application. The F-series lifting columns are mostly used for medical chairs and tables.

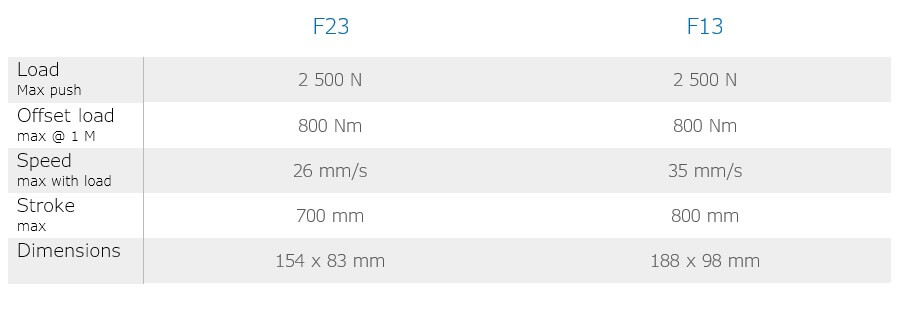

Model |
Load Max Push |
Offset Load Max @ 1 m |
Speed Max with Load |
Stroke Max |
Dimensions |
|---|---|---|---|---|---|
F23 |
2,500 N |
800 Nm |
26 mm/s |
700 mm |
154x83 mm |
F13 |
2,500 N |
800 Nm |
35 mm/s |
800 mm |
188x98 mm |
