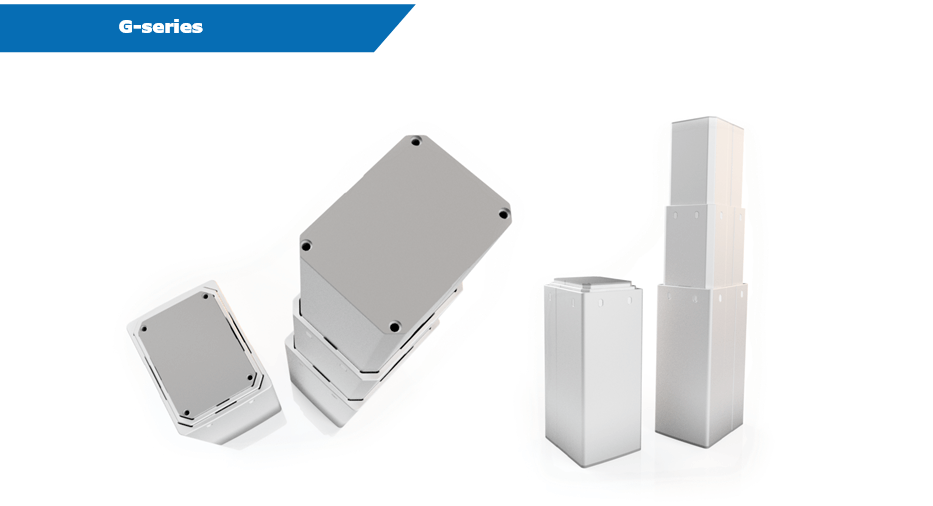

G-Series Telescopic Lifting Columns
Our G-series is a small rectangular lifting column. It is developed for applications that needs a small and robust lifting solution to lift centric or offset loads. G-series are available as 2- or 3-section columns. With its stability and compact design, the G-series lifting columns are used in ergonomic workstations and to lift medical or industrial equipment.

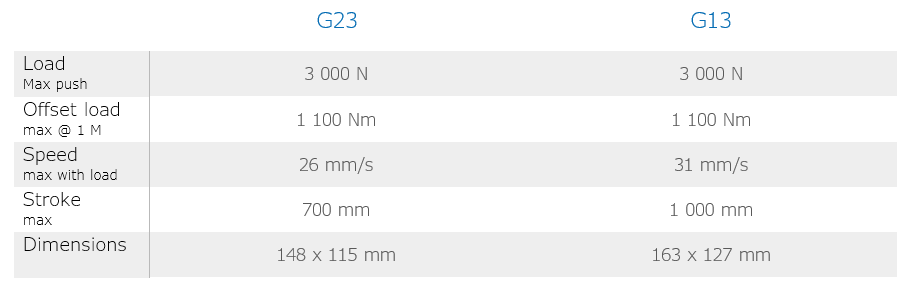

Model |
Load Max Push |
Offset Load Max @ 1 m |
Speed Max with Load |
Stroke Max |
Dimensions |
|---|---|---|---|---|---|
G23 |
3,000 N |
1,100 Nm |
26 mm/s |
700 mm |
148x115 mm |
G13 |
3,000 N |
1,100 Nm |
31 mm/s |
1,000 mm |
163x127 mm |
