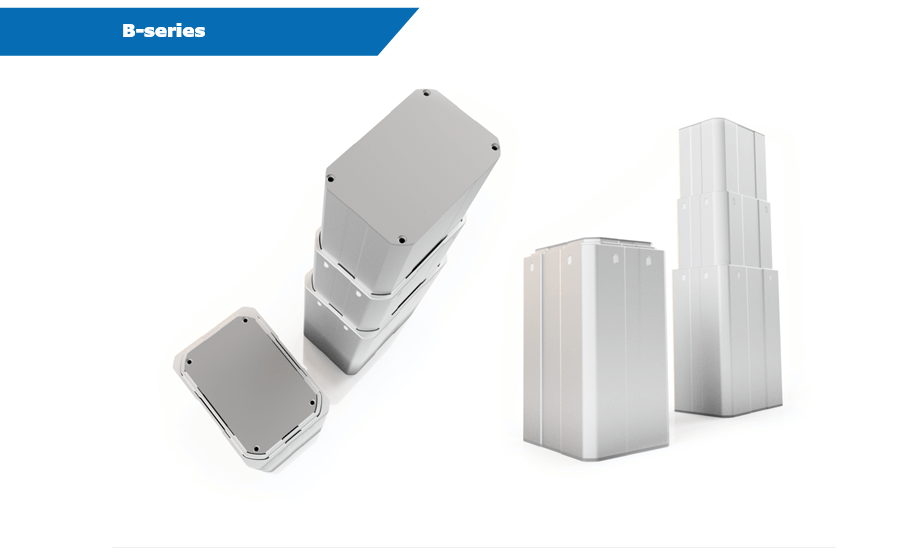

B-Series Telescopic Lifting Columns
Our B-series lifting columns has a rectangular shape which works great in applications with heavy loads. The B-series is developed for demanding applications with both centric and offset loads. It is available as 2- or 3-section columns. Both the 2-section B23 lifting columns and the 3-section B13 lifting columns are compatible with our patented drive which enables longer strokes, higher speeds and heavier loads. The B-series is a series of high performing lifting columns that suits a broad range of applications.

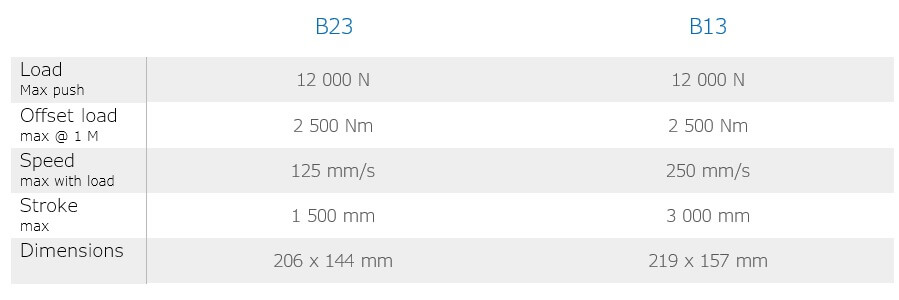

Model |
Load Max Push |
Offset Load Max @ 1 m |
Speed Max with Load |
Stroke Max |
Dimensions |
|---|---|---|---|---|---|
B23 |
12,000 N |
2,500 Nm |
125 mm/s |
1,500 mm |
206x144 mm |
B13 |
12,000 N |
2,500 Nm |
250 mm/s |
3,000 mm |
219x157 mm |
