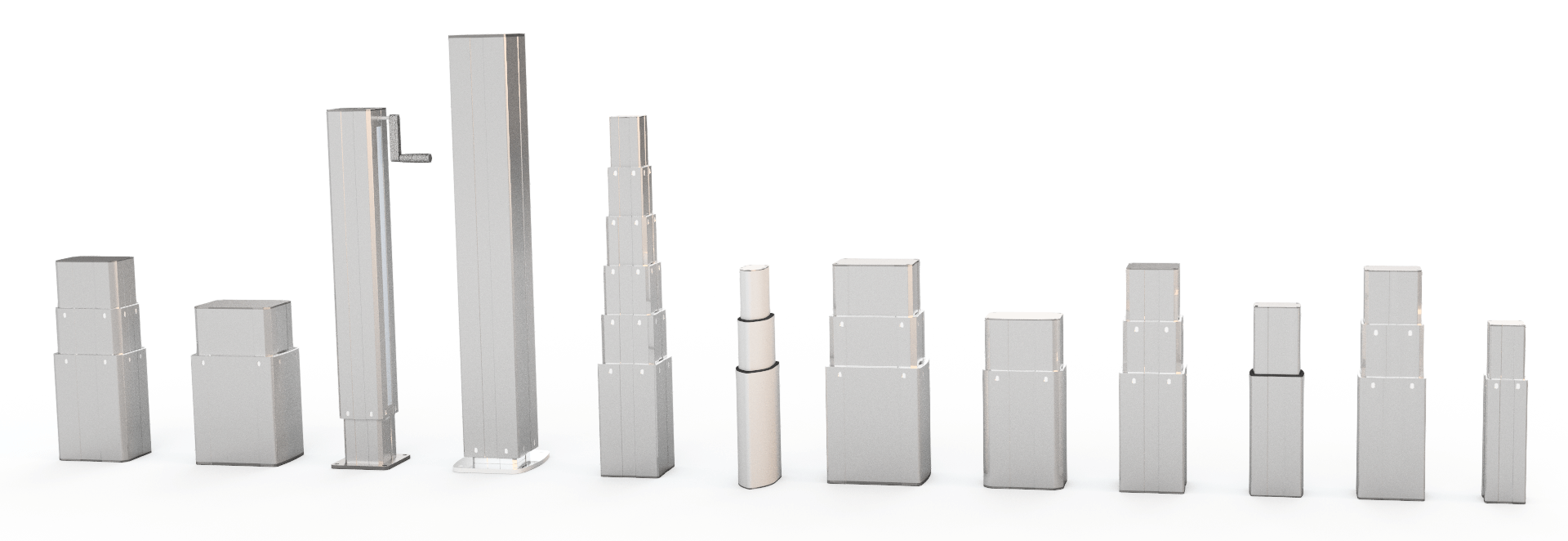

Telescopic Lifting Columns

Isotech’s telescopic lifting columns are designed for medical, radiological, ergonomical and industrial applications. The pillars are constructed with aluminum tubes and long life pads, combined with a very tight tolerance assembly – where others squeeze – we fit. The columns perform a stable, reliable and maintenance free guiding system without any play.

Depending on model, Isotech telescoping pillars are available in push or pull version. As an option you can get them with an encoder for positioning or parallel run of 2 or more columns. If you don’t find a column in our standard range we can customize for you.

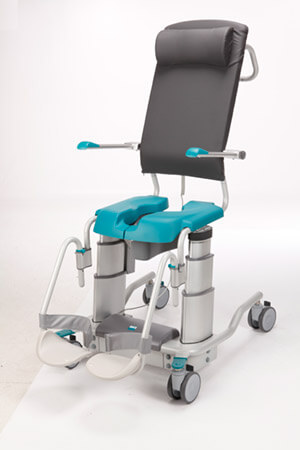

Applications include:

Radiological tables
X-Ray tables
MRI Machines
CT Scanners
Imaging systems

Click here to see more examples of Telescopic Column applications

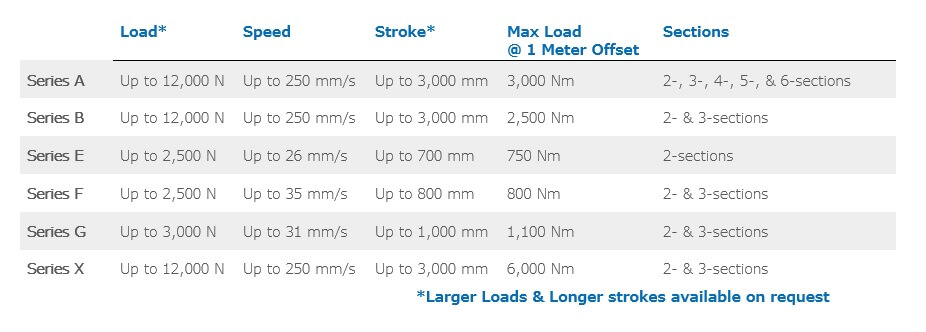

Model	Load *	Speed	Stroke *	Max Load @ 1 Meter Offset	Sections
Series A	Up to 12,000 N	Up to 250 mm/s	Up to 3,000 mm	3,000 Nm	2-, 3-, 4-, 5-, & 6-sections

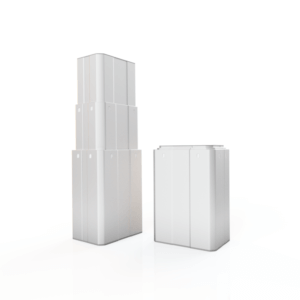

Series B	Up to 12,000 N	Up to 250 mm/s	Up to 3,000 mm	2,500 Nm	2- & 3-sections
Series E	Up to 2,500 N	Up to 26 mm/s	Up to 700 mm	750 Nm	2-sections

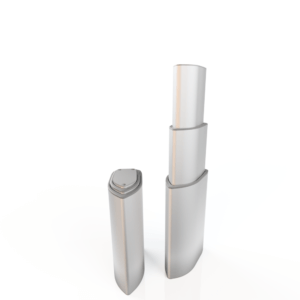

Series F	Up to 2,500 N	Up to 35 mm/s	Up to 800 mm	800 Nm	2- & 3-sections

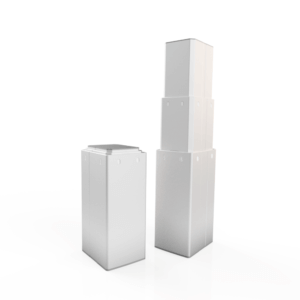

Series G	Up to 3,000 N	Up to 31 mm/s	Up to 1,000 mm	1,100 Nm	2- & 3-sections
Series X	Up to 12,000 N	Up to 250 mm/s	Up to 3,000 mm	6,000 Nm	2- & 3-sections
