Gonio Ways

Gonio Ways

Series: CR, RV

  • Load Capacity: 180 – 761 lbs.
  • Length: 40 – 100 mm
  • Construction: Hardened steel shafts and balls, mild steel end caps.
  • Finish: Clear anodize.

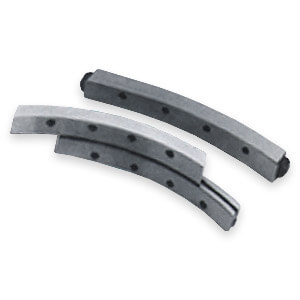

Isotech’s CR and RV Series Gonio Ways are highly accurate curved slide ways that offer unprecedented low friction and precise pendulum motion. These ways feature four hardened and ground curved guide rails in addition to two curved retainers with cross rollers. Our advanced precision grinding processes are used to curve guide rails with v-shaped raceway groove and curved cross roller retainers.

Ideal for applications that require a changing gradient with fixed rotation center point or requiring very accurate radius movement such as optical and measurement instruments.

  • Precise pendulum motion.
  • Low friction, smooth movement.
  • Easy, one-step installation.
  • One component resulting in drop-in installation.
  • Long life and greater durability.
