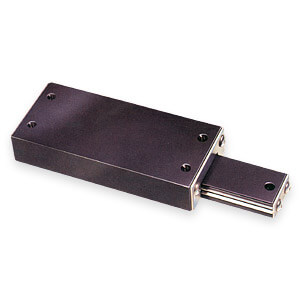

Crossed Roller Slides

Crossed Roller Slides

Series: RD, RDA, RE, REA, RM, RMA, RN, RNA, RS1, RSA1, RS2, RSA2, RS3, RSA3

  • Load Capacity: 30 -779 lbs.
  • Travel: .50 – 12″
  • Length: 1.06 – 15″
  • Straight Line Accuracy: 0.0001″ / inch of travel
  • Positional Repeatability: .0002″
  • Coefficient of Friction: 0.003 typical
  • Construction: Aluminum carriage and base, hardened steel rods and rollers, stainless steel end caps.
  • Finish: Black anodize. Other finishes on request.

Isotech’s Crossed Roller Slides offer the designer an aluminum base and carriage with hardened stainless components for superior corrosion resistance and less chance of particulate contamination. Available in standard low profile mounting, the designer can choose a style of bearing and type of rolling element specifically to meet the needs of the most particular applications.

Preload can be adjusted to change the friction and axial play characteristic therefore customizing the crossed roller slide to its intended use. A 5-inch wide cross section allows the movement of bulky devices without the necessity of constructing tables with more than one unit.

  • Positive stops prevent overtravel.
  • Rollers improve load capacity 8-10 times that of balls.
  • Precision ground shafts provide straight line accuracy of 0.0001″ per inch of travel.
  • Alternately crossed rollers handle force in any direction.
  • Lightweight aluminum carriage and base.
  • Interchangeable with many types of ball slides.
