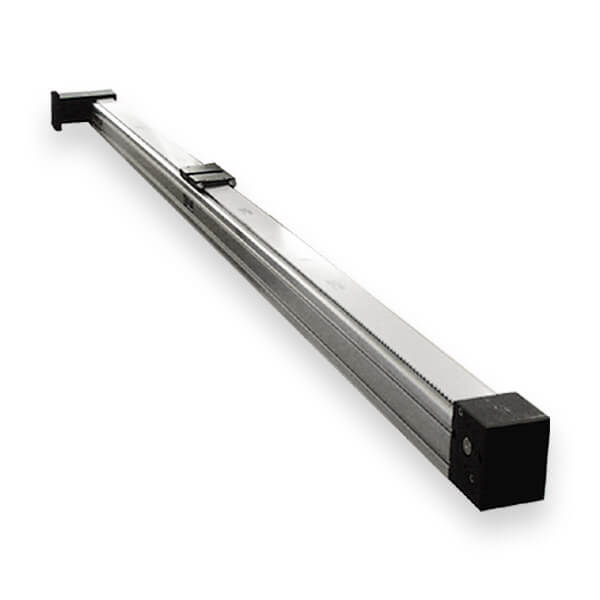

MSA-SB5 Belt Drive Actuator

SKU: MSA-SB5-Belt-Drive Category:

Request Quote

Motion

Horizontal or Vertical

Standard Travels

150 / 5700 mm

Max Load Horizontal [Vertical]

1000 lbs [500 lbs]

Max Speed Horizontal [Vertical]

10160 mm/sec [5080 mm/sec]

Repeatability

+/- 0.025 mm

Features

  • Extruded aluminum actuator body with T-slots for ease of mounting
  • Easy to adjust belt tensioner
  • One piece, machined and stress proof shafted pulley
  • Zero backlash belt to pulley design
  • Corrosion resistant components
  • Longer travel lengths are available on special request

MSA-SB5-Datasheet-1
