Model LRS1-4-C125-XY, Mini Posi Drive

SKU: LRS1-4-C125-XY Category:

* Request quote to see pricing

Request Quote

Unit

US Standard

Series

LRS1

Travel

4"

US Travel Filter

4.01 to 6"

Capacity

40 lbs

US Capacity Filter

0 to 55 lbs

Accuracy

0.0001"

Product Type

Crossed Roller

M1

113.65

M2

413.95

M3

434.65

A

8.32"

B

6.000"

C

2.32"

D

5.375"

H

4.000"

L

2.310"

S

0.990"

Axis

(XY) Double Axis

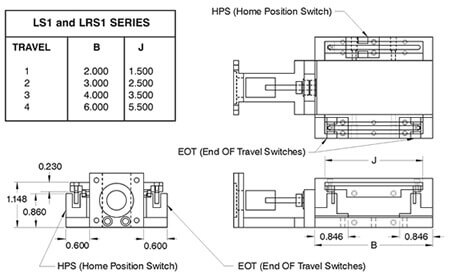

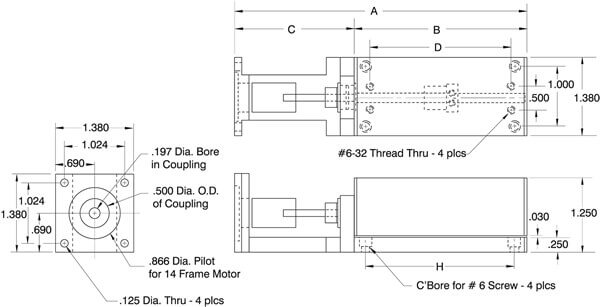

Dimension Drawing
